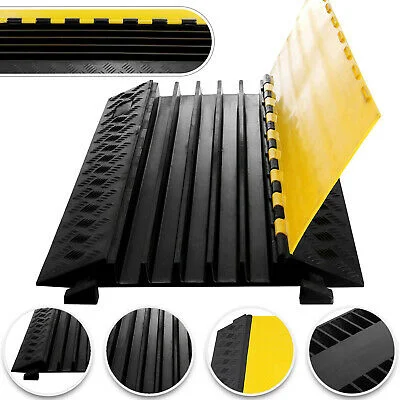

Cable Protector 5 Channel, Size: 900 X 500 X 55 mm
Product Details
Product Overview
Our cable protectors are engineered to shield cables, hoses, and wiring from crushing, abrasion, and impact while eliminating trip hazards in high-traffic environments. Manufactured from high-grade rubber, polyurethane, or PVC, they combine load resistance with weather and chemical durability. Their modular, interlocking design allows quick installation, reconfiguration, and reuse across temporary and semi-permanent applications.
Key Features
High load capacity: Rated for pedestrian, light-vehicle, or heavy-vehicle traffic depending on model.
Multi-channel design: Single or multiple cable channels with hinged or removable lids for fast cable access.
Weather and UV resistance: Stable performance from -30°C to +70°C (typical).
Anti-slip surface: Textured top for traction in wet or dusty conditions.
Interlocking connectors: Tool-free, continuous run assembly with ramped edges to ease wheeled traffic.
High-visibility options: Yellow/black or reflective markings for safety compliance.
Technical Specifications by Model Type
Parameter | Light-Duty (PVC) | Medium-Duty (Rubber) | Heavy-Duty (Polyurethane) | Modular Industrial (HDPE/PU) |
|---|---|---|---|---|
Material | Flexible PVC | Recycled/virgin rubber | Cast polyurethane | HDPE with PU hinge |
Channels | 1-2 | 1-3 | 2-5 | 3-5 |
Channel size (typical) | 15-25 mm | 25-40 mm | 40-80 mm | 50-100 mm |
Max load capacity | 1-2 tons/axle | 5-10 tons/axle | 15-30 tons/axle | 40+ tons/axle |
Operating temp. | 0 to +60°C | -30 to +70°C | -40 to +80°C | -40 to +90°C |
Length per section | 0.9-1.5 m | 0.9-1.0 m | 0.5-1.0 m | 0.5-1.0 m |
Weight (per section) | 1-3 kg | 6-12 kg | 8-25 kg | 10-30 kg |
Lid type | Flip-up | Hinged | Hinged/lockable | Hinged/lockable |
Water resistance | Splash-proof | IP-rated sealing optional | High | High |
Use Case Matrix
Application | Environment | Recommended Type | Key Benefit |
|---|---|---|---|
Offices & conference rooms | Indoor, pedestrian | Light-duty PVC | Neat cable management, trip prevention |
Events, concerts & exhibitions | Indoor/outdoor, crowds, carts | Medium-duty rubber | Safe pedestrian flow, fast setup/teardown |
Film and broadcast sets | Temporary, mixed traffic | Medium-duty rubber | Quick access to cables, low profile |
Construction sites | Outdoor, vehicles, debris | Heavy-duty polyurethane | Crush and abrasion resistance |
Warehouses & logistics | Forklifts, pallet trucks | Heavy-duty polyurethane | Durable under repeated heavy wheel loads |
Industrial plants & workshops | Oil, chemicals, machinery | Modular industrial HDPE/PU | Chemical resistance, hose and cable protection |
Mining & oil and gas | Extreme loads, harsh conditions | Modular industrial HDPE/PU | Withstands trucks and heavy equipment |
Roadworks & temporary traffic | Vehicle crossings | Heavy-duty or modular | Protects power lines and air/water hoses |
Compliance and Quality (edit as applicable)
Manufactured under ISO 9001 quality management.
Materials tested to RoHS and REACH requirements.
Flame-retardant and anti-static options available on request.
Custom colors, branding, and lengths available for volume orders.
Installation and Maintenance
Position the protector across the cable path on a flat, stable surface.
Open the lid, lay the cables in the channels without over-bending, and close the lid.
Connect adjacent sections via the interlocking ends for continuous coverage.
Clean with water or mild detergent, and inspect periodically for wear or damage.
